Back parking sensor EPS4016-BZ-U is equipped with 4 ultrasound sensors that are installed in the back bumpers of the vehicle. They have a high resistance to interference, once activated they reduce the radio sound, they can be configured to have an activation delay and can be temporarily deactivated.
The parking sensor comes with an LED display that signals the proximity of the obstacle using LED lights and a speaker that uses audio to signal the proximity.
Features:

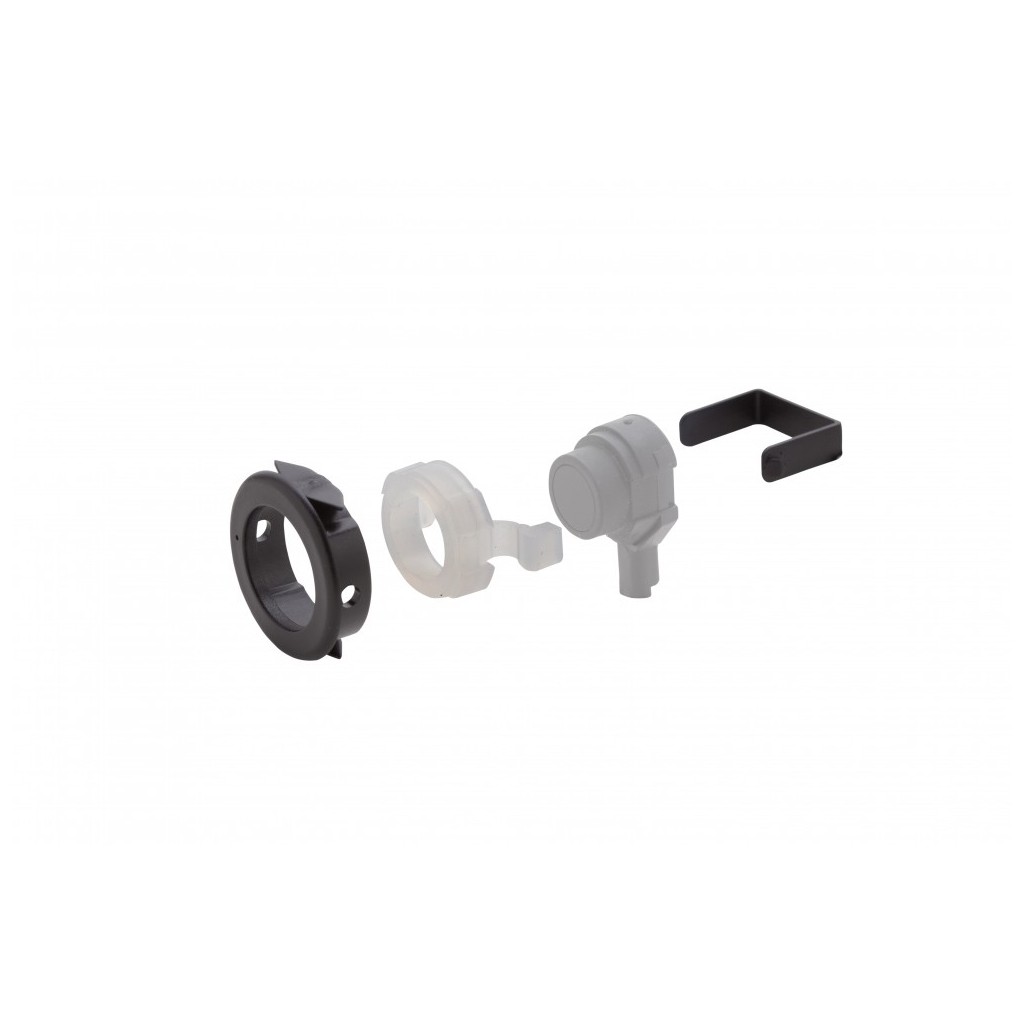

- Installed into metal or plastic bumpers
- Uses an audio signal to notify of the proximity of an obstacle
- Turns on when vehicle is put in reverse
- Turns on when wheicle is put in forward motion gears
- Identification range customisation (for hooks, spare wheel, offroad frames…)
- Adjustible volume and sensor sensitivity
- High resistance to electromagnetic interference
- 4 ultrasound sensors
Technical specifications for Back parking sensor EPS4016-BZ-U:
| Voltage | 10,8 V – 32 V |
| Power (max) | 200 mA |
| Ultrasound frequency | 40 KHz |
| Installation opening width | 16mm or 18mm |
| Operating temperature | -30°C to +80°C |

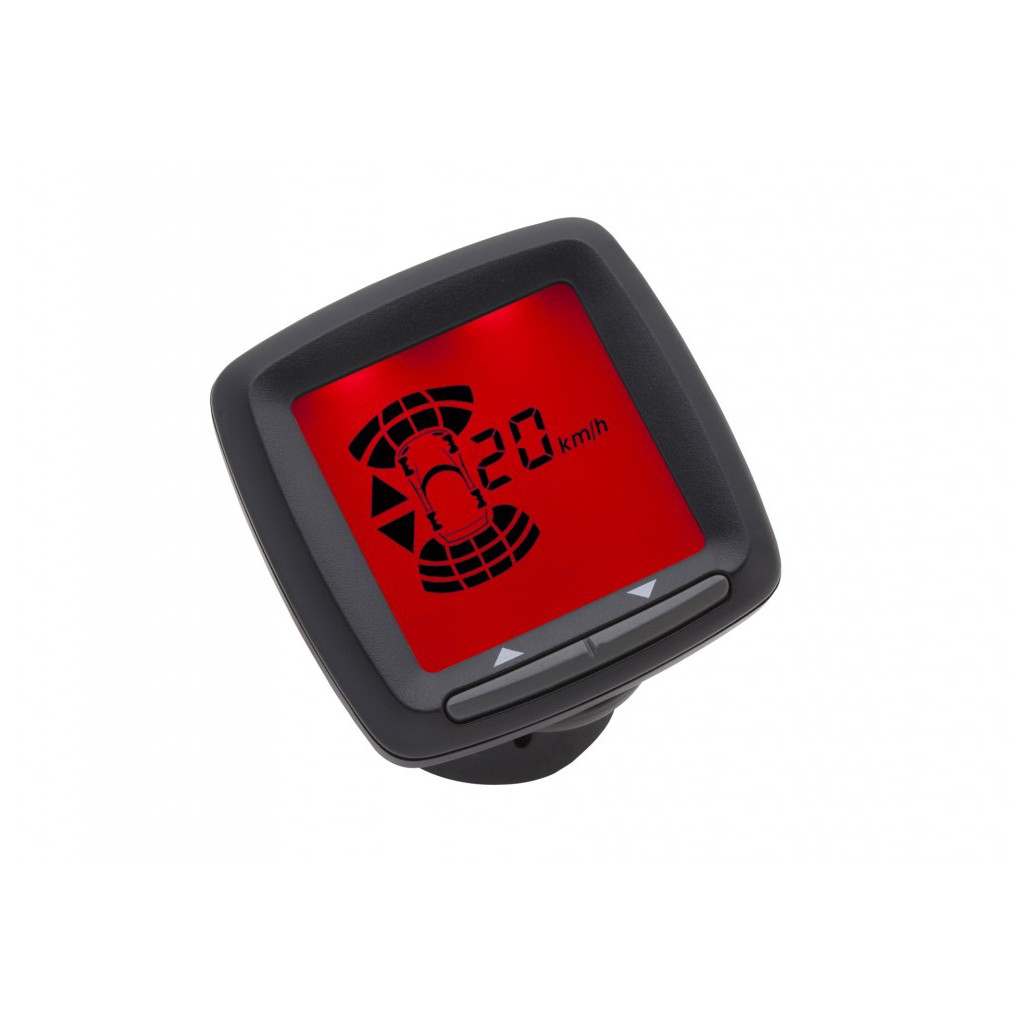

Technical specifications for EPSDISP-BZ13 display:
| Voltage | 9 V – 30 V |
| Power (max) | 120 mA |
| Operating temperature | -25°C to +70°C |
LED light features:
| Zone | LED color | Distance |
| RC (rear) | Red | 350 mm |
| R1 (rear) | Orange | 550 mm |
| R2 (rear) | Green | 1150 mm |
| R3 (rear) | Green | 1600 mm |
Extras:
NOTICE: Installing the parking sensors doesn’t guarantee complete safety. The driver is still required to observe their surroundings carefully as the sensor system might not recognise smaller obstacles or objects that are harder to recognise.
Other parking sensors in our offer can be browsed here.
*The product may differ from image.
