Fusion S 2x LED lighthead uses advanced technologies to improve on the performance of the Fusion series. This is the brightest and the most affordable windshield lighthead in the world. Fusion S 2x lighthead uses advanced 40° optics that is up to 60% brighter than previous versions of Fusion lightheads. No lighthead can be compared to the Fusion series.
Fusion S 2x LED lightheads are adaptable to all windshielsd angles and can be mounted onto any emergency vehicle. They are especially designed to limit vibrations and flare so as not to distract the driver and other vehicle occupants.
The 40° lens is used for long range visibility and 180° lens for wide angle reach.

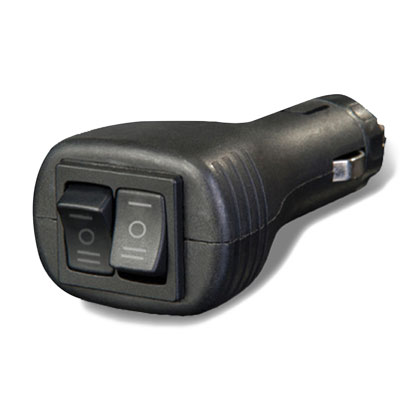

Two programmable modes. These lightheads can be mounted with suction caps or 3M permanent glue. Cigarette plug adapter is used to power the lighthead with switches for color, pattern, and mode.
Features:
- The brightest and most affordable lighthead in the world
- Windshield installation
- Focused lightspread 40° or wide spread 180°
- powered using cigarette plug
- suction cap removable mount or 3M permanent tape
- 2 programmable modes
- syncs with T3, Cannon, Under Mirror Puck and QSM
- Built-in shield protects against back-flash
- 12x single coloured LEDs
- Red, blue, amber, green or white colour
Technical specifications for Fusion S 2x LED lighthead:
| Operating voltage | 12V DC |
| Current Draw | 1.5 A |
| Cable length | 220 cm |
| Single colour model
Dual colour model |
12x 4W Cree LEDs
24x 4W Cree LEDs |
| Lens | 40° or 180° |
| Flash pattern | 11 |
| IP rating | IP67 |
| Certifications* | ECE R65 Class 1, SAE J1113-11, SAE J595, NFPA, KKK, CA Title 13 |
*Approvals may vary depending on actual lighthead configuration.
Connections:
The full range of Lightheads in our offer can be browsed here.
*The product may differ from image.
