Legion LED Lightbar uses D-Fuser or Reflector optics in one colour. Set up with 6 LED front and 12 LED corner lightheads. The lenses are UV protected and can be coloured or clear.
Legion Lightbar has ECE R10 and ECE R65 Class 2 certificate and is available in amber, green or white colour.
Features:
- D-Fuser or Reflector optics ensure 360° seamless light source.
- easy maintenance and lighthead replacement
- Optional takedown and alley lights, STT lights or traffic directors
- Pre-programmed and customisable flash patterns
- Optional: ambient light sensor that automatically activates or de-activates Low-power operation
- Reverse polarity protection
- Extruded aluminum base for better heat dissipation
Technical specifications for Legion LED Lightbar:
| Operating voltage | 12 or 24VDC |
| Charging current | 18A @1.8 VDC
36A @12.8 VDC |
| Power wire | 2x or 4x 14 AWG |
| Function wires | 8x or 16x 22 AWG |
| Certifications | ECE-R10, ECE-R65 (TA2), SAE J845, SAE J595, CA13 |
| IP rating | IPX4K |
| LED colours | Amber, white, green |
| Lenses color | Amber or clear |
*Approvals may vary depending on actual lightbar configuration.
LED technical specifications:
| Lightheads | Number of LEDs |
| corner | 6 LED Reflektor
12 LED D-Fuser |
| Middle lightheads | 3 LED Reflektor
6 LED D-Fuser |
| Optional lightheads | 3 alley lights / 6 takedown/worklight / 9 takedown/worklight |
| Options | Ambient Light Sensor, STT indicator, traffic announcements |
Dimensions:

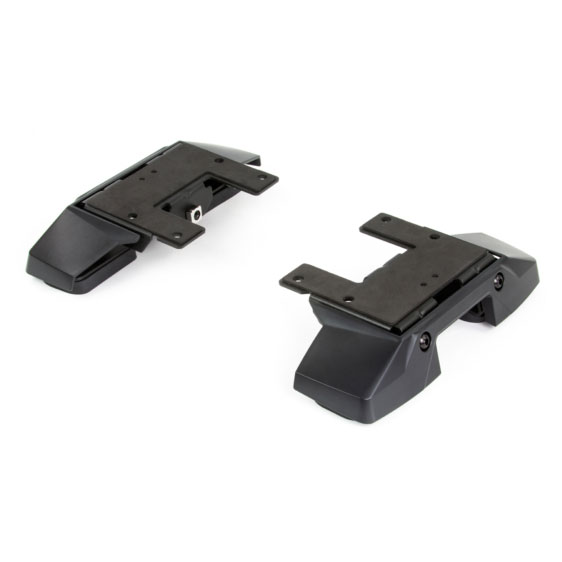

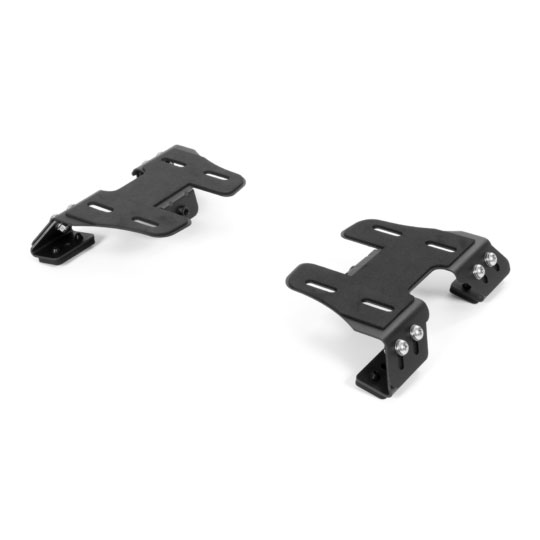

Mounting options:
The full range of Lightbars in our offer can be browsed here.
*The product may differ from image.
