Innovative optical design to M5 Matrix LED Message Board improves legibility and reduces washout due to sunlight allowing the message to be clearly seen by on-coming vehicles.
Easily readable from 100m allows maximum safety for the message board operator and on-coming motorists allowing the message to be seen from far-off distances.
Program up to 99 messages via PC message programmer to allow for use in almost any situation.
M5 Matrix LED Message Board Features:
- Red or amber LEDs
- Suitable for vehicle mounting as well as portable applications
- Flexible mounting options with auto text rotation for mounting upside down
- Weatherproof
- Interior or exterior use
- Junction box reduces wiring to the display
- Reverse polarity protection
Digital Message Controller Features:
- O-LED graphic touchscreen display
- MicroSD slot for message storage and firmware update
- Program up to 99 messages via PC message programmer
- User configurable start-up screen
- Scrolling message support
- Adhesive tape mounting or optional swivel mount kit
Technical specifications for M5 Matrix LED Message Board:
| Voltage | 10-30VDC |
| Avg. Current
(depending on flash pattern) |
2.6A @13.6V |
| Weight | 2.2kg |
| Light source | 8×6 (288) LEDs |
| Wire length | Power wire (5m)
Controller wire (0.6m) Extention (2.5m) |
| Operating temperature | -20°C to 65°C |
| IP rating | IP67 (display only) |
| Certifications* | ECE R10 (display only), C-Tick No. N19830 |
*Approvals may vary depending on actual lighthead configuration.

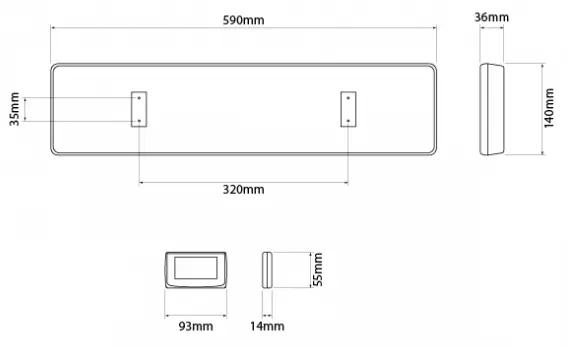

Dimensions:
590mm x 145mm x 40mm
Other traffic advisors in our offer can be browsed here.
*The product may differ from image.
