Micro Bar minibar is a compact lightbar that is easy to use and easy to store. Stylish aerodynamic design with tough polycarbonate housing.
Because of its small size it can be stored in all types of vehicles. It even fits in the glove compartment. Ideal for trucks, construction and municipal vehicles or emergency vehicles.
They come in amber, white or green.
Features:
- 30x 1W High Intensity LED lightheads
- 23 built in selectable flash patterns
- Non-volatile memory recalls last flash pattern used at power up
- LEDs rated to 100,000 hours of operation
- Low power function for night time use
- Water and vibration resistant design for internal or external use
- Available in permanent and magnetic versions
- Reverse polarity protection
- Multiple unit synchronization
Technical specifications for Micro Bar minibar:
| Voltage | 12-24VDC |
| Average current | 2.5A @12 VDC
1.25A @24 VDC (depending on flash pattern) |
| Avg. Power | 30 W (depending on flash pattern) |
| Max power | 5A @12VDC
2.5A @24 VDC |
| Max. current | 60 W |
| Magnet Mount | Dual button cigar-plug (300 cm) |
| Permanent Mount | Red Vcc 30 cm (18 AWG)
Black GND 30 cm (18 AWG) Blue – Flash Patterns and Sync 30 cm (18 AWG) |
| Fuse Rating | 7A |
| Syncronization | Over 15 units |
| Certifications* | SAE, CA13, ECE R10, ECE R65 (TA1, TB1) |
| IP rating | IPX4K |
| Light source | 30x 1W High Intensity LED |
| LED colours | Amber, white, green. |
| Lens colour | Clear, amber |
*Approvals may vary depending on actual lightbar configuration.
Dimensions:

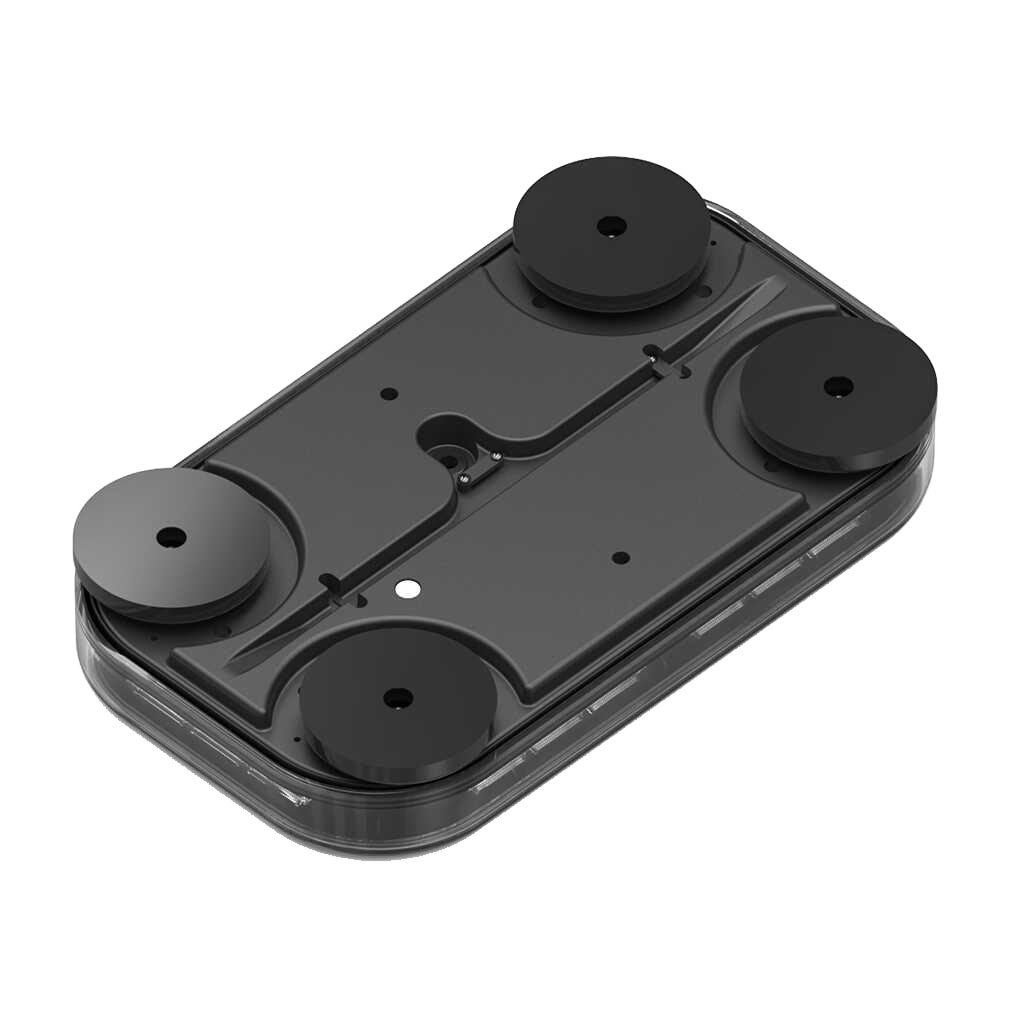

Mounting options:
The full range of Lightbars in our offer can be browsed here.
*The product may differ from image.
