Mini Stealth 3 Lighthead can be installet using adhesive, brackets or screws.
Solid aluminium housing for efficient heat dissipation and maximum durability.
Features:
- Low-profile stealth lighthead
- 12 warning patterns
- LEDs rated to 100,000 hours of operation
- Non-volatile memory recalls last flash pattern used at power up
- Multi-unit synchronization in simultaneous or alternating flash
- Weatherproof and vibration resistant design for internal or external use
- Reverse polarity protection
Technical specifications for Mini Stealth 3 Lighthead (Surface Mount):
| Voltage | 12-24VDC |
| Avg. Current
(depending on flash pattern) |
0.22A @12VDC / 0.11A @24VDC (SAE)
0.38A @12VDC / 0.19A @24VDC (ECE R65) |
| Max. Current | 0.44A @12VDC / 0.22A @24VDC (SAE)
0.76A @12VDC / 0.38A @24VDC (ECE R65) |
| Avg. current (depending on flash pattern) | 2.7W (SAE)
3.05W (ECE R65) |
| Maximum power | 5.3W (SAE)
6.1W (ECE R65) |
| Wires | RED -Vcc @20AWG
BLACK -GND @20AWG YELLOW -flash pattern and sync. @20AWG |
| Wire length | 20cm |
| Fuse | 1A |
| Synchronization | 15 units |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -30°C to +75°C |
| No of flash petterns | 12 (SAE)
5 (R65) |
| IP rating | IPX7 |
| Certifications* | ECE R65 (XA1, XB1, XR1), ECE R10, SAE J595, CA13 (red) |
LED specifications:
| No of LED elements | 3x 3W High-power LED |
| LED color | Amber, green, white |
| Lens colour | Clear |
*Approvals may vary depending on actual lighthead configuration.
Dimensions:

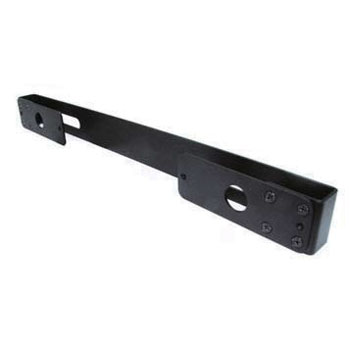

Mounting options:
