Mini Stealth 6 Smoked Lens Lighthead is mounted onto the hood of the car. ECE R65 Class 2 certified. Smoked lens is less conspicuous and the lighthead has a smooth aesthetic for modern vehicles.
Features:
- ECE R65 Class 2 certified
- Smoked lens provide less conspicuous appearance and smooth aesthetic for modern vehicles
- Super low profile discreet mounting.
- Available in horizontal and vertical mounts with Up/Down angle adjustable
- Non-volatile memory recalls last flash pattern used at power up
- Multi-unit synchronization in simultaneous or alternating flash
- Weatherproof and shockproof
- Aluminum base for efficient heat dissipation and maximum durability
- Reverse polarity protection
Technical specifications for Mini Stealth 6 Smoked Lens Lighthead:
| Voltage | 12-24VDC |
| Wires | RED -Vcc @20AWg
BLACK -GND @20AWG YELLOW -flash pattern and sync. @20AWG WHITE** -low power @20AWG |
| Wire length | 20cm |
| Fuse | 2A |
| Synchronization | 15 units |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +75°C |
| No of flash petterns | 5 |
| Certifications* | ECE R65, ECE R10 |
*Approvals may vary depending on actual lighthead configuration.
**Only ECE R65 Class 2 models
LED specifications:
| No of LED elements | 6x High Power LEDs |
| LED color | Blue, red, amber, white |
| Lens colour | Blue, clear, smoked |

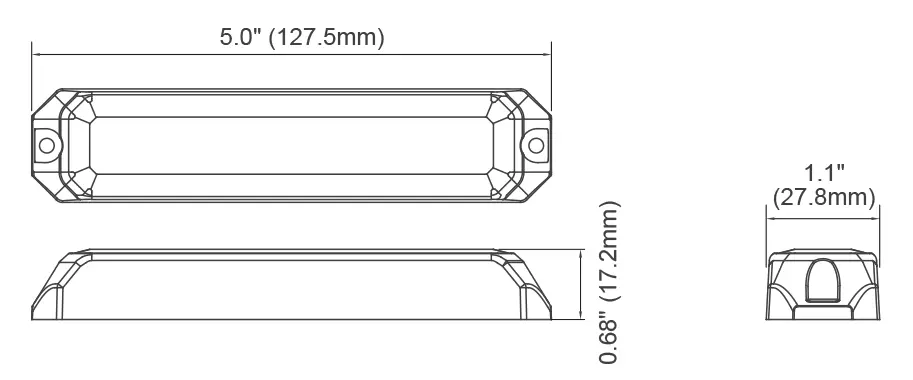

Dimensions:
The full range of available lightheads can be browsed here.
*The product may differ from image.
