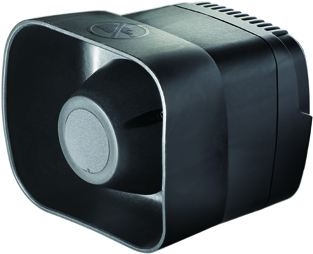

S004 Dual speaker system for motorcycles comes with a remote control and a microphone.
Features:
- Dual speaker system with a master and (optional) slave unit.
- Remote controlled compact 30W siren amplifier with speaker and 3-buton control panel.
- 120dB Sound Pressure Level @5m
- 2x 5A aux outputs for all required warning light controls
- Built-in selecable European Siren Tones with Air Horn
- Remote 3-button Control Panel (SW300-1) with Rubber-touch Tactile Switch and LED backlight
- Night time sound dimming
- Optional Handheld or Clip-on PA Microphone
Technical specifications for S004 Dual speaker system:
| Voltage | 11-16VDC |
| Standby current | 0.2-0.3A |
| AUX port | Max. 5.0A x2 @12VDC |
| Max. Current (Master Siren) | 4.5A @13.6VDC |
| Max. Power (Speaker) | 30W |
| Wires | MASTER UNIT
Power cable 6x 18AWG Function cable 8x 24AWG
SLAVE UNIT Power cable 2x 24AWG |
| Wire length | 550 mm (master unit)
250 mm (speaker) |
| Fuse | 20A +VDC |
| Audio Range | 362hz to 1592Hz |
| Operating temperature | -25°C to +50°C |
| Storage temperature | -25°C to +55°C |
| IP rating | IPX6 (siren), IPX4K (speaker) |
| Certifications* | ECE R10 |
*Approvals may vary depending on actual display configurations.

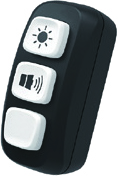

SW 300-1 Control Panel:
| Output power | 3x 0.01A |
| Cable length | 500 mm |
| IP rating | IPX5 |

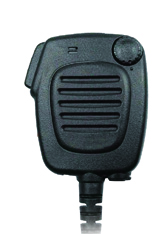

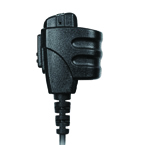

Microphone:
| Microphone type | Dynamic |
| Impedence | 600 Ohm ±15% |
| IP rating | IPX4 |
| Cables | Hanheld microphone (420 mm)
Clip-on Microphone (490 mm) |
| Operating temperature | -25°C to +50°C |
| Storage temperature | -25°C to +55°C |

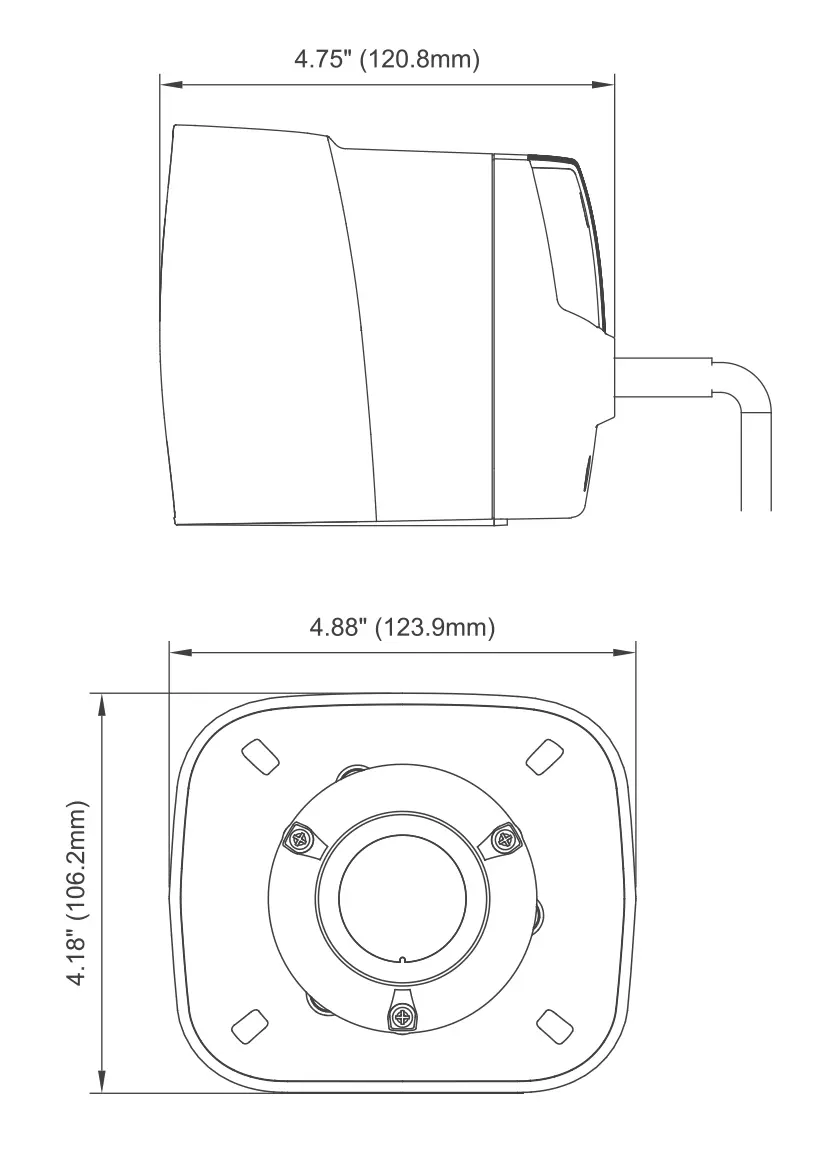

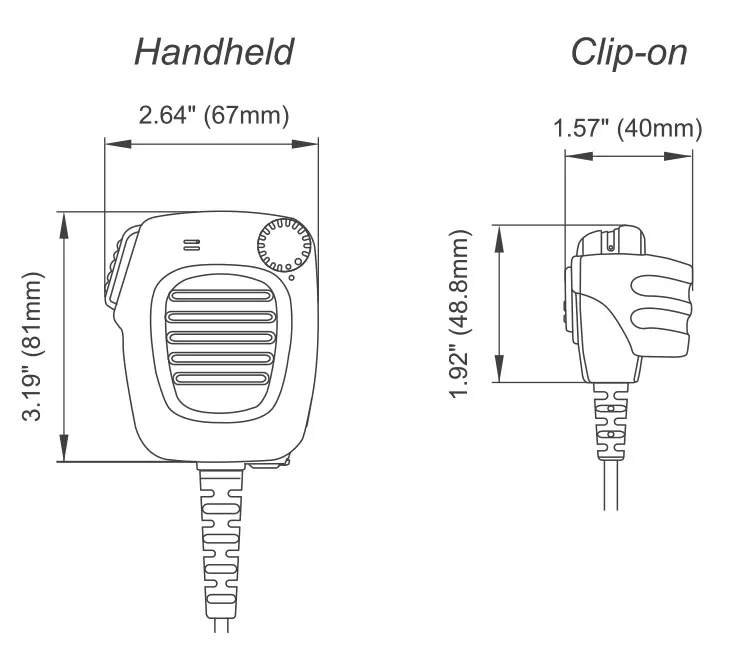

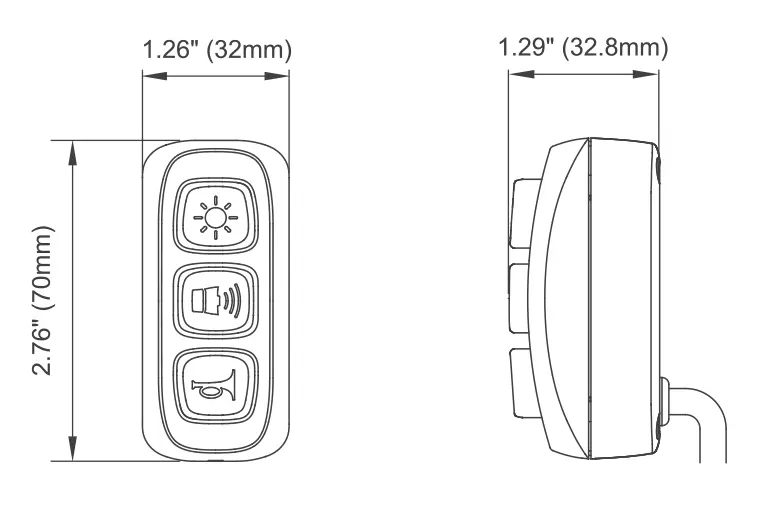

Dimensions:

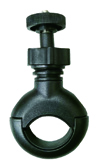

Extras:
Other sirens in our offer can be browsed here.
*The product may differ from image.
