Bison Traffic Advisor is a complete solution for traffic advising and warning.
Unique visor design and tall light emitting surface allows for superb clarity even under sunlight.
Features:
- A complete solution for traffic advising and warning with panel controller, cable and mounting
- Focused, seamless and high intensity warning visibility
- Unique visor design and tall light emitting surface allow superb clarity even under sunlight.
- Plug-n-play cable design for quick and simple installation
- Programmable for cruise mode and/or end-flasher mode
- LED indicators on controller for instant pattern display in car
- Solid Aluminium extrusion for heat dissipation
- Non-volatile memory recalls last flash pattern used at power up
- EMC and reverse polarity protection
Technical specifications for:
| Voltage | 12-24VDC |
| Avg. Current
(depending on flash pattern) |
1.15A @12VDC & 24VDC |
| Max. Current | 2.3A @12VDC & 24VDC |
| Avg. current (depending on flash pattern) | 13.8W @12VDC
27.6W @24VDC |
| Maximum power | 27.6W @12VDC
55.2W @12VDC |
| Wires | RED +VDC @20AWG
BLACK -GND @20AWG BLUE IGN (ignition) @20AWG PURPLE AUX (auxiliary) @20AWG |
| Wire length | 120cm |
| Fuse | 3A |
| Operating temperature | -40°C to +60°C |
| Storage temperature | -40°C to +75°C |
| IP rating | IPX6 |
| Certifications* | ECE R10, SAE J595 Class 1, CA13 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
| No of LED elements | 32 LED (4x per lighthead) |
| LED color | Blue, red, amber |
| Lens colour | Clear |

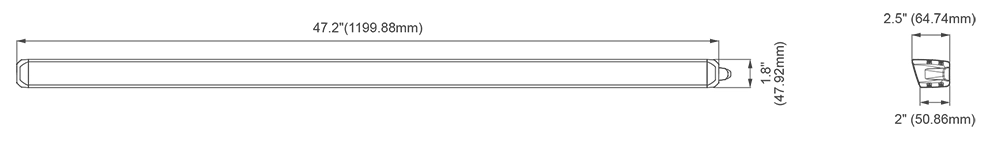

Dimensions:
Mounting options:
Other traffic advisors in our offer can be browsed here.
*The product may differ from image.
