Diamondback minibar is designed to be affordable with no compromise in brightness. Offers less wind resistance thanks to a curved dome with 360° light output according to ECE R65 and SAE standards.
Ideal minibar for municipal and emergency vehicles. Can be installed permanently or on a magnetic mount.
Features:
- Multi-unit synchronization
- Low power function for night time use
- Water and vibration resistant design
- LEDs rated to 100,000 hours of operation
- Non-volatile memory recalls last flash pattern used at power up
- Reverse polarity protection
Technical specifications for Diamondback Minibar:
| Voltage | 12-24VDC |
| Average current | 2.88A @12VDC
1.44A @24VDC |
| Avg. Power | 34.5W (depending on flash pattern) |
| Max power | 5.75A @12VDC
1.44A @24VDC |
| Max. current | 69W |
| Magnet Mount | Dual button cigarette plug |
| Permanent Mount | RED -Vcc @18AWG
BLACK -GND @18AWG Blue Flash patterns and sync @18AWG |
| Cable length | Magnetic Mount – 300cm
Permanent Mount – 30cm |
| Fuse Rating | 8A |
| Certifications* | ECE R65 (TA1, TB1), ECE R10-04, SAE J845 Class 1 |
| No of LED elements | High Intensity LED x24 |
| LED colours | Amber |
| Lens colour | Amber, clear |
| Flash pattern | 23 |
*Approvals may vary depending on actual lightbar configuration.
Dimensions:

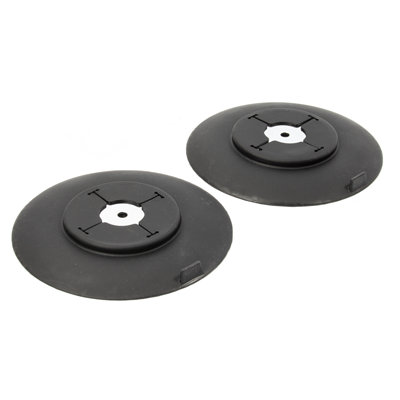

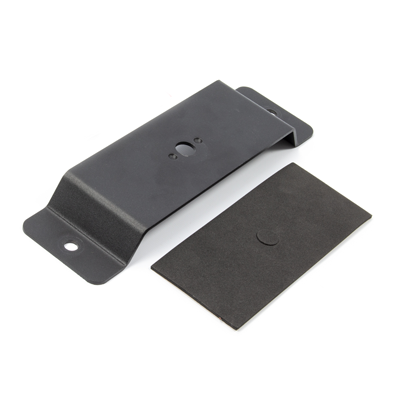

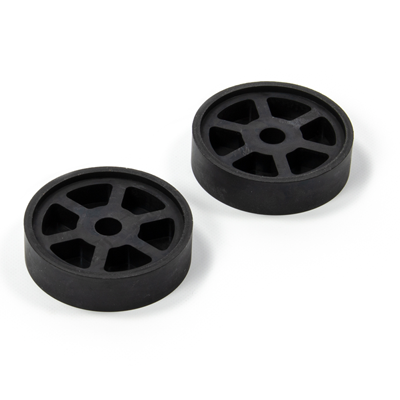

Mounting options:
The full range of Lightbars in our offer can be browsed here.
*The product may differ from image.
