Edge Saber 3 Lighthead has a narrow profile with remarkable light output.
Can be mounted virtually anywhere with the universal angle adjustable bracket. Can be installed onto the windshield using a shroud kit.
Features:
- Narrow profile with horizontal or vertical mounting
- Universal angle adjustable bracket for mounting anywhere
- Efficient and powerful output
- ECE R10 EMC compliant
- Multi-unit synchronization in simultanoeuous or alternating flash
- Weatherproof and shockproof
- Long life LEDs rated to 100,000 hours of operation
- Non-volatile memory recalls last flash pattern used at power up
- Reverse polarity and load dump protection
- For internal or external use
Technical specifications for Edge Saber 3 Lighthead:
| Voltage | 12-24VDC |
| Avg. Current
(depending on flash pattern) |
0.4A @12VDC
0.2A @24VDC |
| Max. Current | 0.79A @12VDC
0.4A @24VDC |
| Avg. current (depending on flash pattern) | 4.74W |
| Maximum power | 9.48W |
| Wires | RED -Vcc @20AWG
BLACK -GND @20AWG ŽUTA -functons and sync @20AWG |
| Wire length | 25cm |
| Fuse | 1A |
| No of flash petterns | 12 |
| IP rating | IPX8 |
| Certifications* | ECE R10, SAE J595 Class 1, CA13 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
| No of LED elements | 3x High Power LED |
| LED color | Blue, red, amber, green, white |
| Lens colour | Clear |
Dimensions:

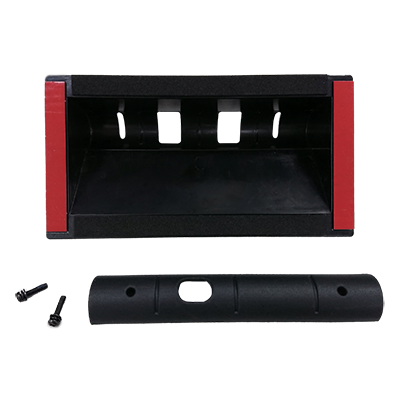

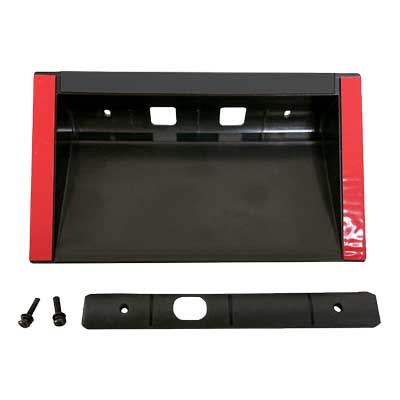

Mounting options:
The full range of available lightheads can be browsed here.
*The product may differ from image.
