Kuiper FIT LED Lightbar is highly customizable and affordable lightbar. A special advantage of the lightbar is the possibility of applying the illuminating centre sign (ICS).
There is a choice between an amber or a clear UV resistant dome and lens.
Approved with ECE R65 Class 1 and SAE J845 Class 1.
Features for Kuiper Fit LED Lightbar:
- Sleek design and low profile with 360° warning light coverage
- Amber or clear UV resistant dome.
- 58.5mm height and 215mm width
- Easy maintenance and lighthead replacement
- Extruded aluminum base for best rigidity and heat dissipation
- Optional Illuminated Centre Sign (ICS)
- Higly affordable and customizable
Technical specifications for Kuiper FIT LED Lightbar:
| Operating voltage | 12VDC or 24 VDC |
| Cables | Red warnings @12AWG
Black -GND @12AWG White ICS (20AWG) Yellow – flash patterns (20AWG) |
| Cable length | 3040mm +/-50mm |
| Certifications* | ECE R65 Class I (TA1/TB1), ECE R10, SAE J845 Class 1, CA Title 13, CISPR 25 |
| LED colours: | Amber, white |
| Lens colour | Clear, amber, opaque white (ICS) |
*Approvals may vary depending on actual lightbar configuration.
LED specifications:
| Lightheads | Number |
| Side lighthead | 3+3 |
| ICS | 6 |
| Middle Lighthead (short) | 3 |
| Middle Lighthead (standard) | 6 |
Dimensions:

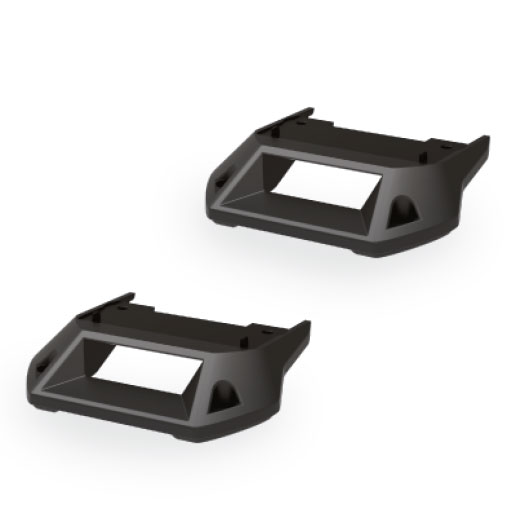

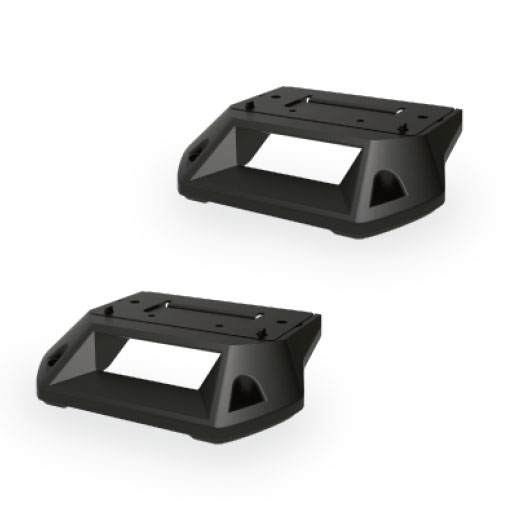

Mounting options:
The full range of lightbars in our offer can be browsed here.
*The product may differ from image.
