LED Pad 3 lighthead has a super-thin design – only 6.6mm thick. Mounts using the 3M adhesiver on the back of the lighthead.
The lighthead can be mounted internally or externally; vertically or horizontally.

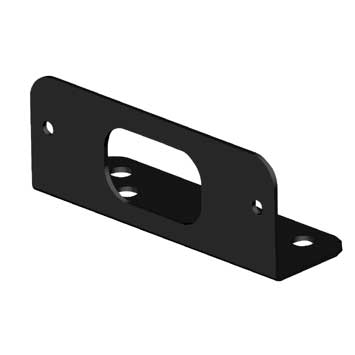

Accessories include the L-bracket mount.
Features:
- Super low-profile thickness for discreet mounting
- Self-adhesive applied on the back for quick simple mounting
- 12 flash patterns
- Rated up to 100,000 hours – Long-Life LED
- Non-volatile memory recalls last flash pattern used at power up
- Multi-unit synchronization in simultanoeuous or alternating flash
- Reverse polarity protection
- Aluminum base for efficient heat dissipation and maximum durability
- Reverse polarity protection
Technical specifications for LED Pad 3:
| Voltage | 12-24VDC |
| Avg. Current
(depending on flash pattern) |
0.27A @12VDC
0.14VDC @24VDC |
| Max. Current | 0.54A @12VDC
0.27A @24VDC |
| Avg. current (depending on flash pattern) | 3.25W |
| Maximum power | 6.5W |
| Wires | RED -Vcc @24AWG
BLACK -GND @24AWG YELLOW -flash pattern and sync @24AWG |
| Wire length | 20cm |
| Fuse | 1A |
| Synchronization | 15 units |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +75°C |
| No of flash petterns | 12 |
| IP rating | IPX8 |
| Certifications* | ECE R10, SAE J595 Class 1, CA13 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
| No of LED elements | 3x Hight Power LED |
| LED color | Blue, red, amber, green, white |
| Lens colour | Clear |
Dimensions:
Mounting options:
The full range of available lightheads can be browsed here.
*The product may differ from image.
