Undercover UR06 Dual Colour Lighthead combines two lightheads connected through a flash controller. It makes the installation and setup simpler.

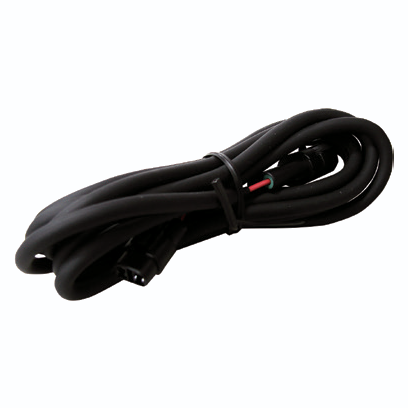

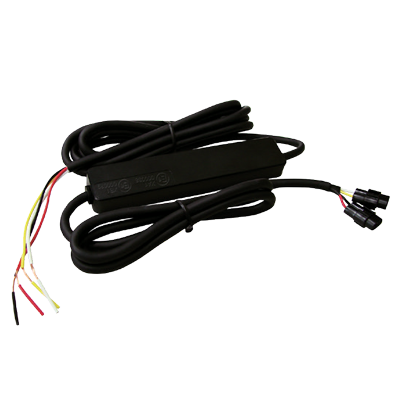

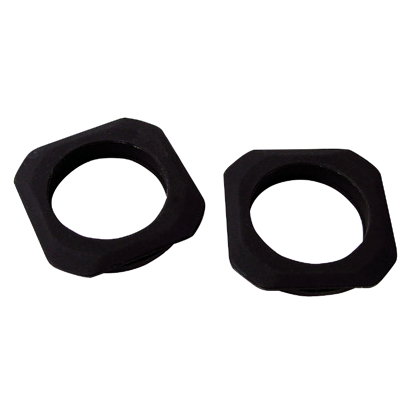

Two lightheads, LED flash controller, extension cable and two mounting grommets included.
Features:
- Undercover UR lighthead series in dual colour
- Multi-memories design for instant switch between selected flash patterns and colours
- Heavy-duty design with waterproof connectors
- 2 heads to 1 flash controller for easy set-up and installation
- Multi-unit synchronization in simultanoeuous or alternating flash
- Weatherproof and vibration resistant
- Reverse polarity protection
- For external or internal use
Technical specifications for Undercover UR06 Dual Colour Lighthead:
| Voltage | 12-24VDC |
| Avg. Current
(depending on flash pattern) |
0.55A @12VDC
0.28A @24VDC |
| Max. Current | 1.1A @12VDC
0.55A @24VDC |
| Avg. current (depending on flash pattern) | 6.6W |
| Maximum power | 13.2W |
| Wires | RED -Vcc @20AWG
BLACK -GND @20AWG YELLOW -flash pattern and sync. @20AWG WHITE -phase @20AWG |
| Wire length | 180cm |
| Cable length | Output (79cm @24AWG)
Extension (200cm @24AWG) Lighthead (18cm @24AWG) |
| Max cable length | Controller 450cm
Lighthead 780cm |
| Fuse | 2A |
| Synchronization | 15 units |
| No of flash petterns | 27 |
| IP rating | IPX7 |
| Certifications* | ECE R10, SAE J595 Class 1 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
| No of LED elements | 12X High Intensity |
| LED color | Blue, red, amber, green, white |
| Lens colour | Clear |
Dimensions:
Mounting options:
The full range of available lightheads can be browsed here.
*The product may differ from image.
