NX16 control unit improved features make it easier for use. All ports are located on one side which makes installation easier. It is used to operate rooftop lighting, secondary lighting and power management.
The 200W siren allows for a ‘two-vehicle-effect’.
The improved NX software has new features and functions and improved user experience thanks to more intuitive navigation.
All ports are located on one side which makes installation easier.
Software features:
- An intuitive user interface that makes it easier to use the unit
- Pre-programmed basic functions and specialized modules and user-defined execution order of modules
- Drag-and-drop feature enables user-defined module order
- Clear and concise interface for module settings configuration
Control unit features:
- Easy installation due to improved software configuration
- Easier diagnostics and fault identification
- Fully compatible with existing MCS handsets and units
- Medium power outputs current limit increased to 8A and low power output current limit increased to 2.5A
- 3 user-defined CAN reading ports and upgraded CAN-FD port for larger data length
- Second CAN line in vehicle if required
- Class D siren amplifier for enhanced sound quality and minimal PA interference
- Workshop and city mode volume control
- Reduced weight
Technical specifications for NX16 Control Unit:
| Voltage | 12-24VDC |
| Running current consumption (max) | 93mA |
| Sleeping current consumption (max) | 29mA |
| External shutdown current consumption (max) | 4mA |
| Interface | CAN-BUS |
| Input | 6 universal ports |
| Outputs | 4 x 20A (high power)
8 x 8A (medium power) 4 x 2.5A (low power) |
| Operating temperature | -20°C to +50°C |
| Storage temperature | -20°C to +50°C |
| Certifications* | ECE R10 |
*Approvals may vary depending on actual display configurations.

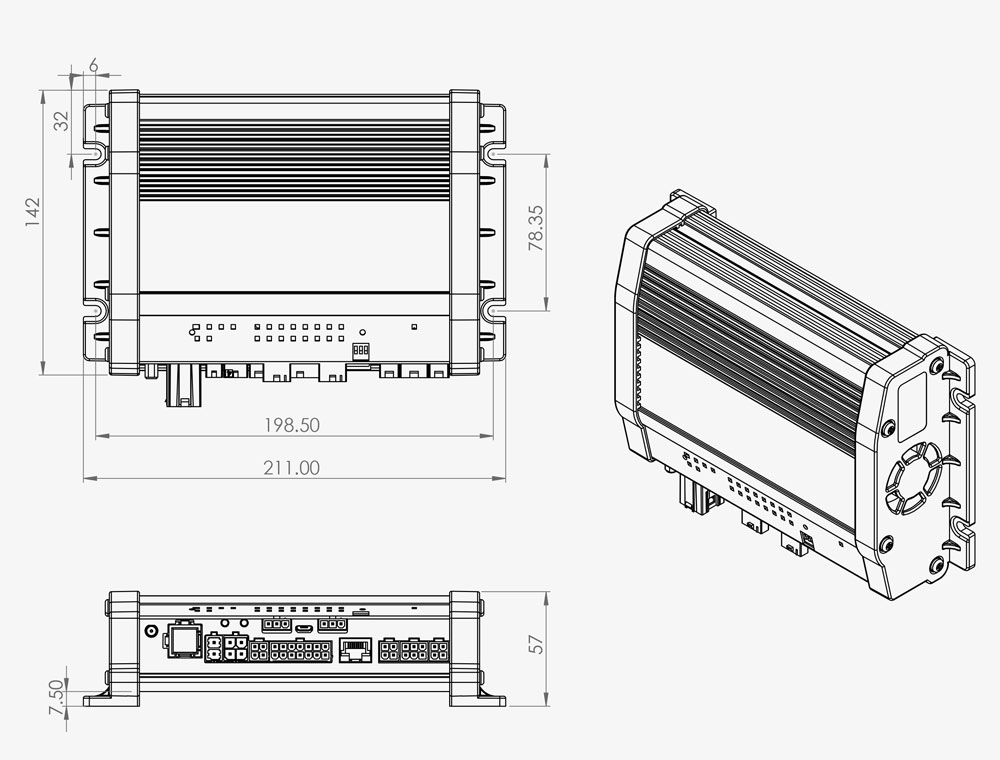

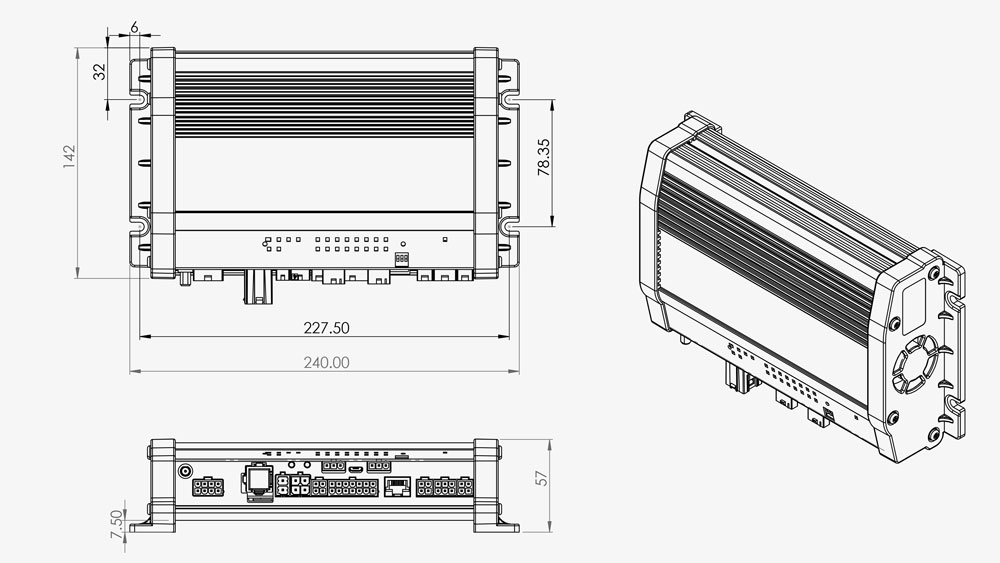

Dimensions:
Other contol units in our offer can be browsed here.
*The product may differ from image.
