S007 Siren Amplifier and Microphone is a Class D amplifier for low amp draw with a compact size design. Selectable tone groups meet various Euro country standards. Dual Speaker Effect using a single speaker through Mix Tone function.
Features:
- 1 00W siren amplifier for single speaker (11 Ohm)
- Class D amplifier for low amp draw, clean tone and compact size design
- Siren Interlock input that disable siren activation without primary warning
- Selectable tone groups to meet various Euro country standards
- Positive or negative inputs for Horn Ring Transfer input
- Radio Re-Broadcasting (RRB) for audio replay
- Unique Mix tone function provides “Dual Speaker Effect” with only single speaker
- Record-n-Play that records voice and play instantly without using a memory card
- Optional Microphone and PA function with handheld microphone
- Reverse polarity protection
Technical specifications for S007 Siren Amplifier and Microphone:
| Voltage | 12-24VDC |
| Standby current | 0 mA (w/o IGN wire)
0.38 A (w/ IGN wire) |
| Max. Current | 9A @12VDC
4.5A @24VDC |
| Siren output power | 100W |
| Siren frequency | 759Hz – 1592Hz |
| Operating temperature | -20°C to 50°C |
| I/O | +VDC
-GND Speaker Output+- IGN Siren Tone Siren Interlock Day/Night mode Radio Audio Input +- Horn Ring Transfer Input Record-n-Play |

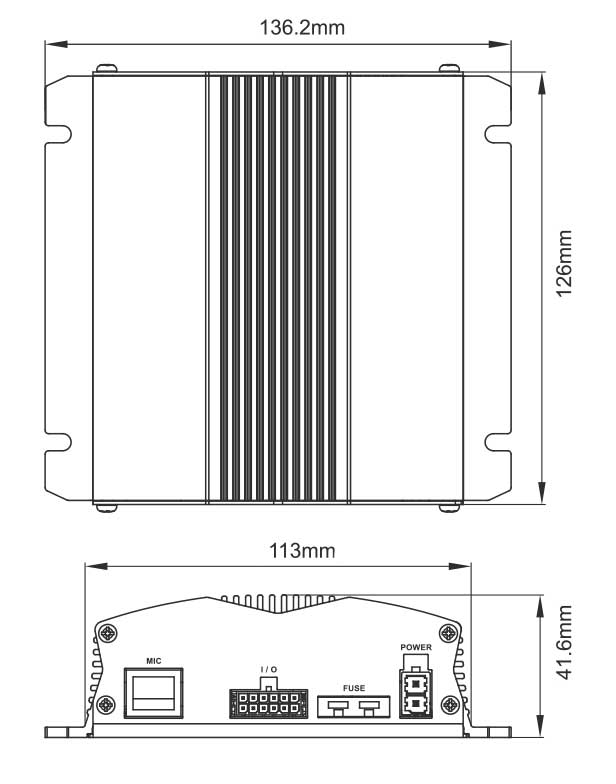

Dimensions:
Extras:
