WLD LED Work Lamp can be used in many commercial vehicles for agriculture, towing, construction, mining, cargo and marine vehicles. Also suitable for emergency vehicles – police, firefighters, ambulance… Also suitable for emergency vehicles – police, firefighters, ambulance…
Features:
- ‘Flood’ or ‘spot’ beam
- Heavy-Duty Powder Coated Die Cast Aluminum
- Weatherproof and vibration resistance design
- LEDs rated to 50,000 hours of operation
- Waterproof connector
- Reverse polarity protection
Technical specifications for WLD LED Work Lamp:
| Voltage | 11 – 70 VDC |
| Avg. Current | 1.8A |
| Max. Current | 3.6A @12.8VDC
1.8A @25.6VDC 0.8A @60VDC |
| Maximum power | 48W |
| Wires | Red VCC 16AWG
Black GND 16AWG |
| Wire length | 20cm |
| Extention cable | 16AWG |
| Extention cable length | 100cm |
| Operating temperature | -30°C to +50°C |
| Storage temperature | -40°C to +75°C |
| Fuse | 5Amps |
| IP rating | IP68 |
| Certifications* | EMC |
*Approvals may vary depending on actual display configurations.
LED Features:
| No of LED elements | 4x High Intensity LED |
| Luminance | 3200lm |

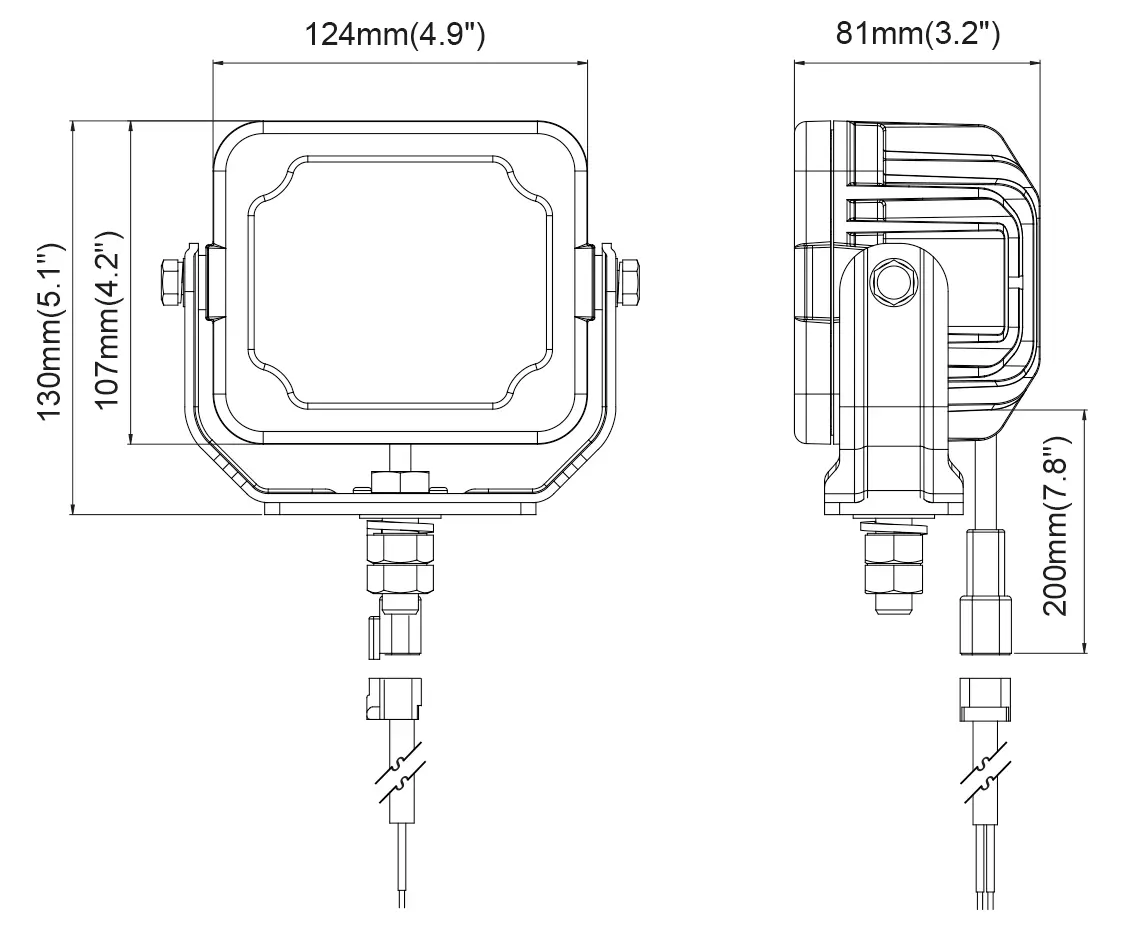

Dimensions:
Other worklights in our offer can be browsed here.
*The product may differ from image.
