Stealth Registration Plate Warning System SRP-MS6 is designed for european-size vehicle plate strandards.
The RegPlate is pre-assembled with dual MS6 lightheads in a clear or smoked lens.
ECE R65 Class 2 (XA2, XB2) compliant – certification will be applied upon request.
Features:
- Pre-assembled Dual MS6 RegPlate System for Euro style reg plates
- Smoked lens allows for unmarked application of law enforcement vehicles
- Flexible rubber body fits most vehicle surface
- 3 meter cable for easy wiring installation
- Synchronized flash simultaneously, alternately or in unique criss-cross split flash
- Weatherproof and vibration resistant design for external or internal use.
- Aluminum base for efficient heat dissipation and maximum durability
- Reverse polarity protection
Technical specifications for Stealth Registration Plate Warning System SRP-MS6:
Voltage | 12-24VDC |
Avg. Current
(depending on flash pattern) |
1.2A @12VDC
0.6A @24VDC |
Max. Current | 2.4A @12VDC
1.2A @24VDC |
Avg. current (depending on flash pattern) | 14.4W |
Maximum power | 28.8W |
Wires | RED -Vcc @20AWG
BLACK -GND @20AWG ZELENA -Flash Patterns & Sync @20AWG YELLOW -Flash Patterns & Sync @20AWG WHITE -Low Power @20AWG |
Wire length | 300cm |
Fuse | 3A |
Synchronization | up to 15 lightheads |
Operating temperature | -20°C to +60°C |
Storage temperature | -40°C to +75°C |
No of flash petterns | 31 |
Certifications* | ECE R65 (XA2, XB2 – clear lens) (XA1, XB1 – smoked lens), ECE R10 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
No of LED elements | 6x High Intensity LED per lens (12 total) |
LED color | Blue, amber, white |
Lens colour | Clear, smoked |
Dimensions:

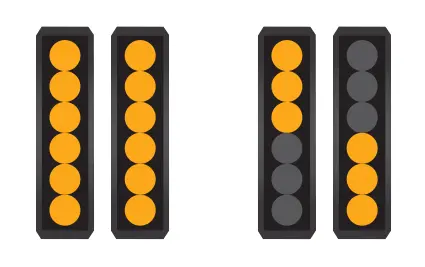

Flash patterns:
The full range of available lightheads can be browsed here.
*The product may differ from image.
