Stellar Ligthbar is and extra-flat LED lightbar created for maintenance, communal and agricultural vehicles in amber colour.

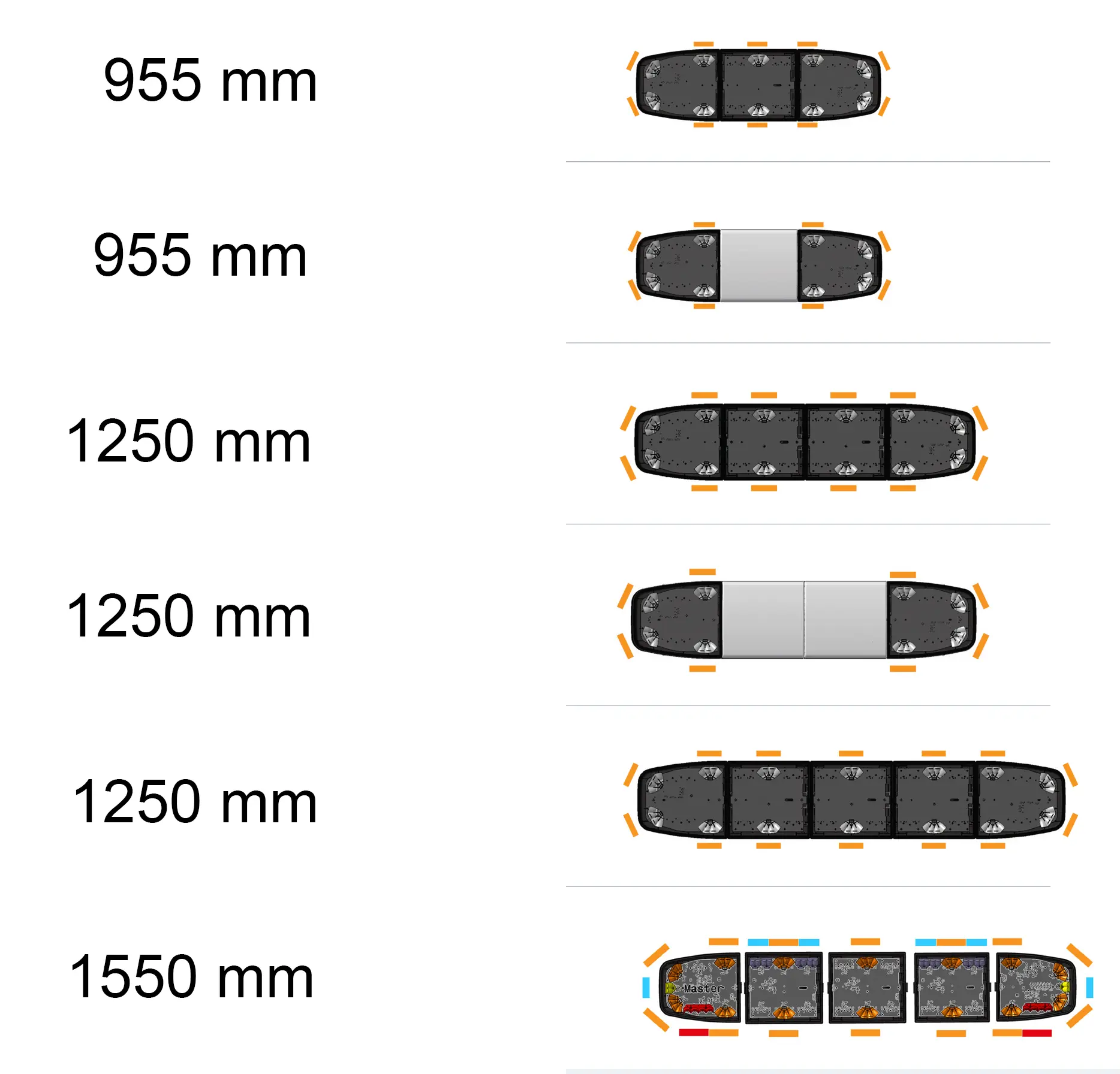

Stellar Lightbar is available in 4 lengths and is widened by adding modules to the bar.
Functions as STT, indicator lights, rear and/or alley lights and work lights or traffic master.
Central illuminated sign option.
Features:
- CAN BUS connection
- Extra flat, aerodynamic design.
- Wideness by adding extra modules
- 360° light output
- STT, indicator lights, rear and/or alley lights and work lights or traffic master
- Alley and work lights – 100 lm
- Central illuminated sign option
- Cruise light feature available
- Ultra robust polycarbonate housing
Technical specifications for Stellar Ligthbar:
| Voltage | 10-36VDC |
| Wire length | 5m |
| Operating temperature | -30°C to +60°C |
| IP rating | IP6K9K |
| Certifications* | ECE R10, ECE R65 (TA1/TB1), SAE Class 1, CISPT25 Class 3 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
| LED color | Amber |
| Lens colour | Clear |
| Top cover | Grey |
Dimensions:
With support: 280 mm (W) x 950/1250/1550/1850 (L) x 124.5 mm
Without support: 280 mm (W) x 950/1250/1550/1850 (L) x 75 mm
The full range of Lightbars in our offer can be browsed here.
*The product may differ from image.
