Undercover 03 Lighthead is an all-in-one self-contained warning lighthead with a surface recessed mount. Self-contained and versatile without the need for an external flasher.
Surface or side-mirror mount.
Features:
- Self-contained lighthead for easy and versatile installation
- Complies with ECE R10 EMC and ECE R65
- Multi-unit synchronization in simultanoeuous or alternating flash
- Weatherproof and shockproof
- LEDs rated to 100,000 hours of operation
- Aluminium base for efficient heat dissipation
- Non-volatile memory recalls last flash pattern used at power up
- Reverse polarity and load dump protection
Technical specifications for Undercover 03 Lighthead:
Voltage | 12-24VDC |
Avg. Current
(depending on flash pattern) |
0.39A @12VDC
0.19A @24VDC |
Max. Current | 0.77A @12VDC
0.39A @24VDC |
Avg. current (depending on flash pattern) | 4.62W |
Maximum power | 9.24W |
Wires | RED -Vcc @24AWG
BLACK -GND @24AWG YELLOW -flash pattern and sync @24AWG |
Wire length | 20cm |
Fuse | 1A |
Synchronization | 15 units |
Operating temperature | -40°C to +70°C |
Storage temperature | -40°C to +75°C |
No of flash petterns | 16 |
IP rating | IPX7 |
Certifications* | ECE R65 (XA1, XB1, XR1), ECE R10, SAE J595, SAE J845 Class 1 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
No of LED elements | 3x High Power |
LED color | Blue, red, amber, white |
Lens colour | Clear |
Dimensions:

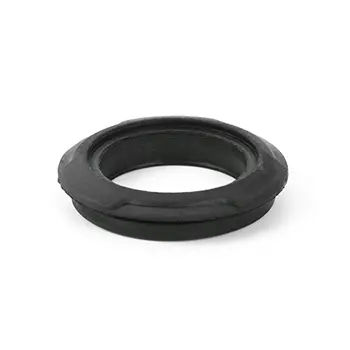

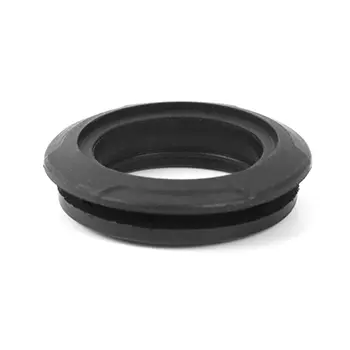

Mounting options:
The full range of available lightheads can be browsed here.
*The product may differ from image.
