Undercover UR04 lighthead is easy to install and use. Two heads to one flash controller for easy set-up and installation. Ø 26mm surface recessed mount.
Heavy-duty design with waterproof connectors.
Features:
- Ø26mm grommet
- Heavy-duty design with waterproof connectors
- ECE R65 Class 1 compliant
- 2 heads to 1 flash controller for easy set-up and installation
- Multi-unit synchronization in simultanoeuous or alternating flash
- Weatherproof and vibration resistant
- Reverse polarity protection
- For external or internal use
Technical specifications for Undercover UR04 Lighthead:
| Voltage | 12-24VDC |
| Avg. Current
(depending on flash pattern) |
1.25A @12VDC
0.63A @24VDC |
| Max. Current | 2.5A @12VDC
1.25A @24VDC |
| Avg. current (depending on flash pattern) | 15W |
| Maximum power | 30W |
| Wires | RED -Vcc @20AWG
BLACK -GND @20AWG YELLOW -flash pattern and sync. @20AWG WHITE -phase @20AWG |
| Wire length | 185cm |
| Cable length | Output (79cm @20AWG)
Extension (200cm @20AWG) Lighthead (18cm @20AWG) |
| Max cable length | Controller 450cm
Lighthead 780cm |
| Fuse | 5A |
| Synchronization | Over 15 units |
| No of flash petterns | 14 |
| Certifications* | ECE R65 (XA1, XB1), ECE R10, SAE J595, CA13 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
| No of LED elements | 4x High Intensity LED per head (8x total) |
| LED color | Blue, red, amber, green, white |
| Lens colour | Clear |
Dimensions:

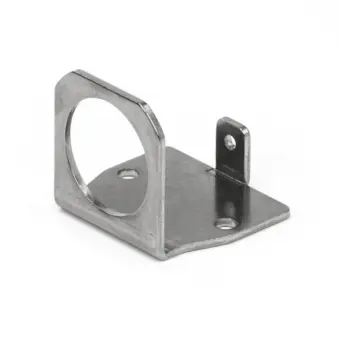

Mounting options:
The full range of available lightheads can be browsed here.
*The product may differ from image.
