WLC LED Work Light can be used in many commercial vehicles for agriculture, towing, construction, mining, cargo and marine vehicles. Also suitable for emergency vehicles – police, firefighters, ambulance… Also suitable for emergency vehicles – police, firefighters, ambulance…
Features:
- Adjustable angle
- Heavy-Duty Powder Coated Die Cast Aluminum
- Weatherproof and vibration resistance design
- LEDs rated to 100,000 hours of operation
- Reverse polarity protection
Technical specifications for WLC LED Work Light 306 Series:
Voltage | 10 – 70 VDC |
Avg. Current | 0.7A |
Max. Current | 1.6A @12.8VDC
0.73A @25.6VDC |
Maximum power | 22W |
Wires | Red VCC 20AWG
Black GND 20AWG |
Wire length | 120cm |
Fuse | 3Amps |
IP rating | IP67 |
Certifications* | EMC |
*Approvals may vary depending on actual display configurations.
LED Features 306 Series:
No of LED elements | 6x High Intensity LED |
Luminance | 1000lm |
Technical specifications for WLC LED Work Light 506 Series:
Voltage | 10 – 70 VDC |
Avg. Current | 1A |
Max. Current | 2A @12.8VDC
0.9A @25.6VDC |
Maximum power | 27W |
Wires | Red VCC 20AWG
Black GND 20AWG |
Wire length | 120cm |
Fuse | 5Amps |
IP rating | IP67 |
Certifications* | EMC |
*Approvals may vary depending on actual display configurations.
LED Features 506 Series:
No of LED elements | 6x High Intensity LED |
Luminance | 1900lm |

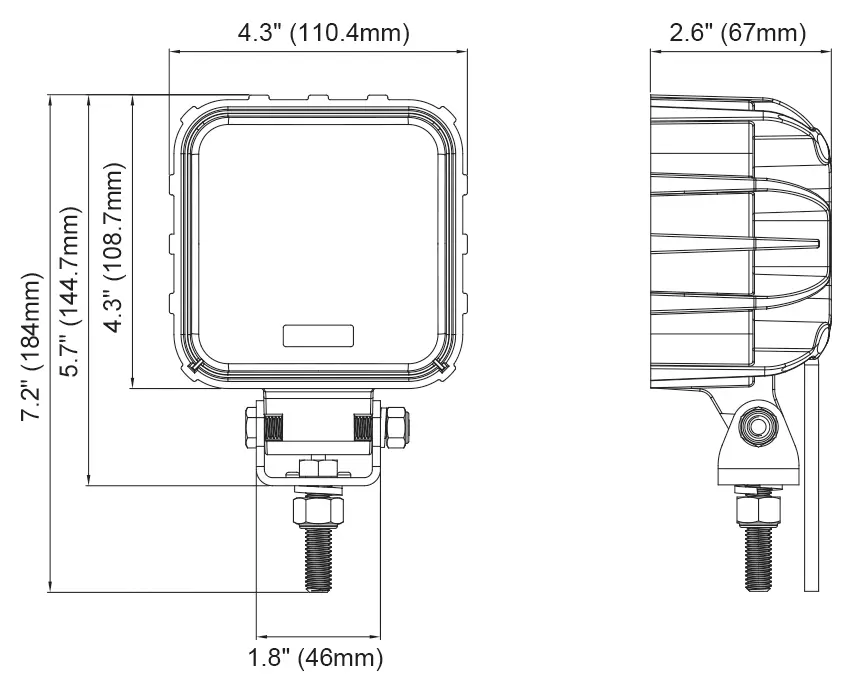

Dimensions:
Other worklights in our offer can be browsed here.
*The product may differ from image.
