WLK LED Round Interior Light with Snap-in Installation can be installed without the use of tools.
Features:
- 1100 lm flood round interior light for in-vehicle illumination
- Snap-in spring, tool-free installation design
- ECE R10 EMC compliance
- Two operating modes: full power and low power mode
- Aluminium base for efficient heat dissipation
Technical specifications for WLK LED Round Interior Light:
|
LEDs |
High power LED x 18 pcs |
|
Voltage |
12-24 V DC |
|
Max. lumens |
1863 lm @ Full power |
|
186 lm @ Low power |
|
|
Effective lumen |
1107 lm @ Full power |
|
102 lm @ Low power |
|
|
Avg. current |
0,55 A @ 12 VDC |
|
Max. current |
1,1 A @ 12 VDC |
|
Avg. power |
6,6 W |
|
Max. current |
13,2 W |
|
Wires |
Red-Vcc |
|
White-low power |
|
|
Black-GND |
|
|
Fuse |
1,5 A |
|
LED color |
White |

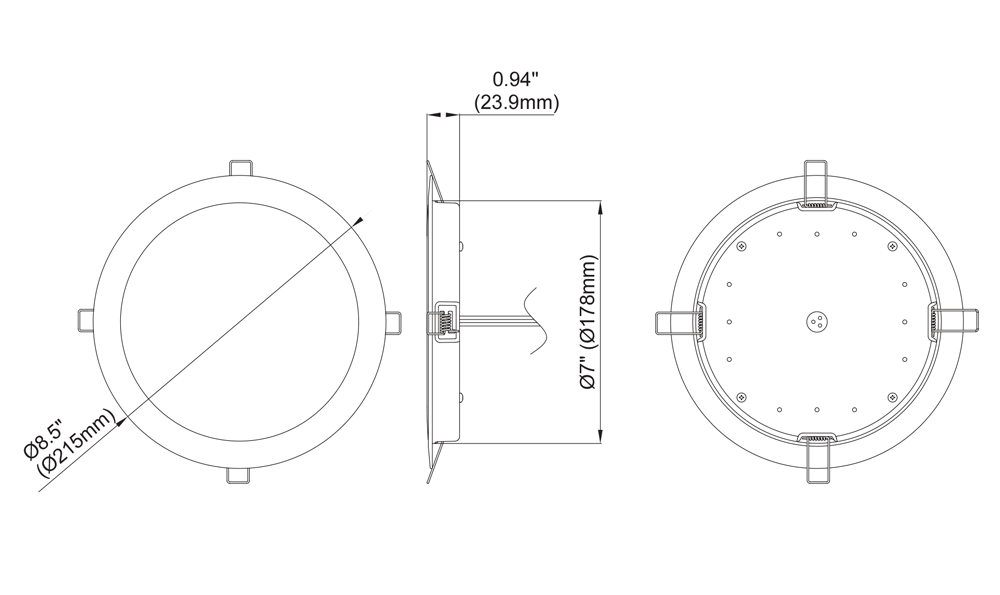

Dimensions:
Other interior lighting in our offer can be browsed here.
*The product may differ from image.
