Shop / Emergency lighting / Blue Line / Lightheads
  • xt12 bljeskalica 2
  • cr06 usmjerena bljeskalica prozirna leća
Filter
xt12 bljeskalica 2
xt12 bljeskalica 2
xt12 bljeskalica 2
xt12 bljeskalica 2

Xtreme Thin XT12 Dual Colour Lighthead

Colour combinations: red/blue, red/amber, blue/amber, green/amber, red/white, blue/white, amber/white.

Steady-burn pattern for scene / flood light.

For external or internal use.

Add to Quote loading
Categories: Blue Line, Emergency lighting, Lightheads Tags: dual colour, Juluen
Kategorije proizvoda
  • Communication Equipment
    • Accessories
    • Antennas
    • INTERCOM
    • Radios
  • Control Units
    • Controllers
    • Handsets
  • Emergency lighting
    • Amber Line
      • Beacons
      • Lightbars
      • Lightheads
      • Mini Lightbars
      • Road lighting displays
      • Traffic advisors
    • Blue Line
      • Beacons
      • Lightbars
      • Lightheads
      • Mini Lightbars
      • Stealth Plate
      • Traffic Advisors
  • Equipment for people with disabilities
    • Lifts and ramps
    • Safety Restraints
    • Seating
    • Smartfloor
    • Steps
    • Swivel seats
  • Matins custom
  • Optional Equipment
    • Heaters
    • High pressure kits
    • Lifting loads
  • Other equipment
    • Back-up Beeper
    • Parking sensors
    • Video systems
  • Power supply
    • Battery chargers
    • Charging systems
    • Desktop chargers
    • Inverters
    • Low Voltage Protector
    • Sockets/chargers
    • Voltage converters
  • Sirens and Speakers
    • Sirens
    • Speakers
  • Work Lighting
    • Flashlights
    • Interior lighting
    • Scene lighting
    • Spotlights
    • Telescopic masts
  • Description

Xtreme Thin XT12 Dual Colour Lighthead uses Xtreme optics for a wide light output and classical appearance. Steady-burn pattern for scene / flood light.

Surface or pedestal Mount.



Features:

  • 10mm super low-profile thickness
  • new generation Xtreme optic for wide angle visual and classic aesthetics
  • 3 independently controlled warning memories for 3 pre-selected flash pattern and colour mode
  • Steady-burn pattern for scene / flood light
  • Long life LEDs rated to 100,000 hours of operation
  • Non-volatile memory recalls last flash pattern used at power up
  • Multi-unit sync
  • Aluminium base for heat dissipation
  • Weatherproof and vibration resistant design for external or internal use.
  • For external or internal use
  • Reverse polarity protection



Technical specifications for Xtreme Thin XT12 Dual Colour Lighthead:

Voltage 12-24VDC
Avg. Current

(depending on flash pattern)

0.8A @12VDC

0.4A @24VDC

Max. Current 1.6A @12VDC

0.8A @24VDC

Avg. current (depending on flash pattern) 8.6W
Maximum power 19.2W
Wires RED -Vcc @20AWG

BLACK -GND @20AWG

WHITE -low voltage @20AWG

YELLOW -functons and sync @20AWG

Wire length 265mm (surface mount)

1100mm (pedestal mount)

Fuse 2A
IP rating IPX8
No of flash petterns 16 ili 26 (depending on model)
Certifications* ECE R65 (XA1, XB1, XR1), ECE R10, SAE J595 Class 1, CA13 Class B

*Approvals may vary depending on actual lighthead configuration.



LED specifications:

No of LED elements 12x High Power LED
LED color Blue, red, amber, white
Lens colour Clear, blue, red



Dimensions:

xt12 ugradnja na stalak
Ugradnja na stalak
xt12 površinska ugradnja
Površinska ugradnja

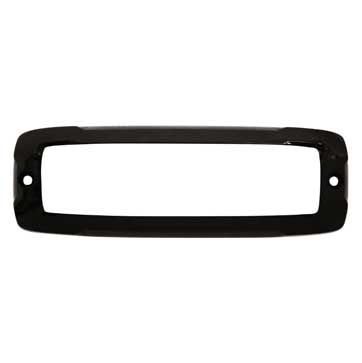

Mounting options:

xt12-nosač
xt12-nosač
xt12-nosač



The full range of available lightheads can be browsed here.

*The product may differ from image.
