Aegis LED lightbar has broad visibility and powerful output. Durable aluminium base and polycarbonate housing protect it from outside influences.
The lightbar can optionally havea coloured top, ICS, traffic director and takedown and alley lights.
Features:
- Durable casing and outline with a modern design and elegant look
- Powerful optics that meet the ECE R65, SAE and NFPE specifications
- Single or dual colour combination
- Only 83 mm height with broad visibility and powerful output
- Coloured top to show designation more prominently
- Optional takedown and alley lights
- Built in traffic director enables worksite control with a flick of a switch
- Wire functions and settings are customised via a PC software and USB
Technical specifications for Aegis LED Lightbar:
| Operating voltage | 12VDC or 24VCD |
| Cable length | 480cm |
| 2 cable model
|
2x Vcc @12AWG
2x GND @12AWG 16x function wires @22AWG |
| 1 cable model
|
1x Vcc @10AWG
1x GND @10AWG 8x function wires @22AWG |
| Certifications* | ECE R65 Class 2, ECE R10, SAE J845 Class 1, CA Title 13, NFPA 1901 Zone A |
*Approvals may vary depending on actual lightbar configuration.
LED specifications:
| Lightheads | Number of LEDs |
| corner | 9 LED D-Fuser Single Colour
18 LED D-Fuser Dual Colour (only 12VDC models) |
| Middle | 3 LED Fresnel
6 LED Linear 12 LED Linear Dual Colour (only 12VDC models) |
| Alley | 3 LED |
| Takedown | 6 LED takedown / worklamp
9 LED takedown / worklamp |
Colour options:
| LED colours | Amber, white, green |
| Lens colours | Clear, semi-opaque (ICS) or semi-opaque red (ICS) |
| Top cover colour: | Amber, black or white (ICS) |
Dimensions:

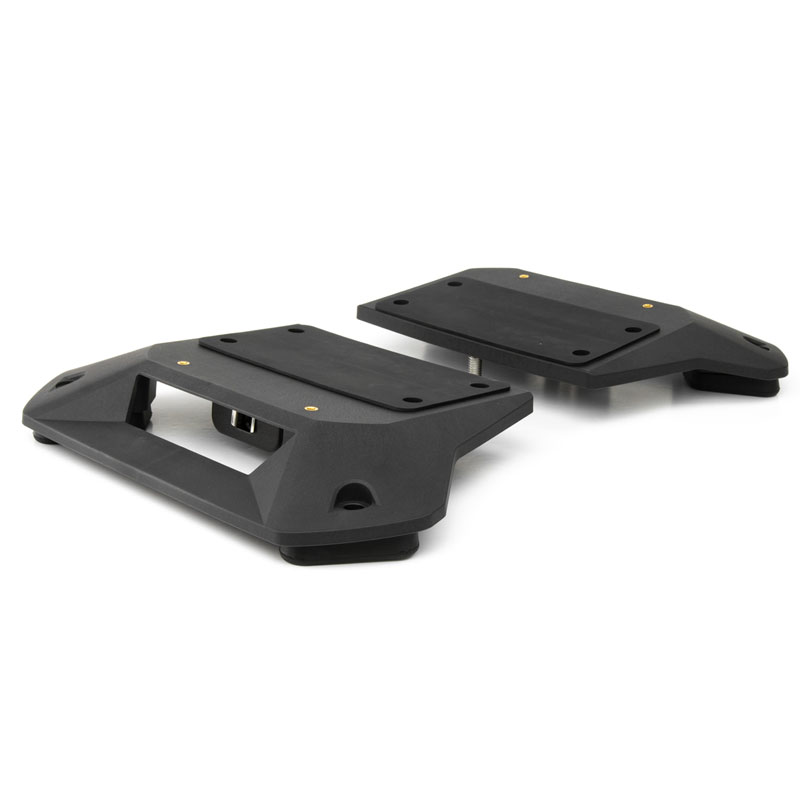

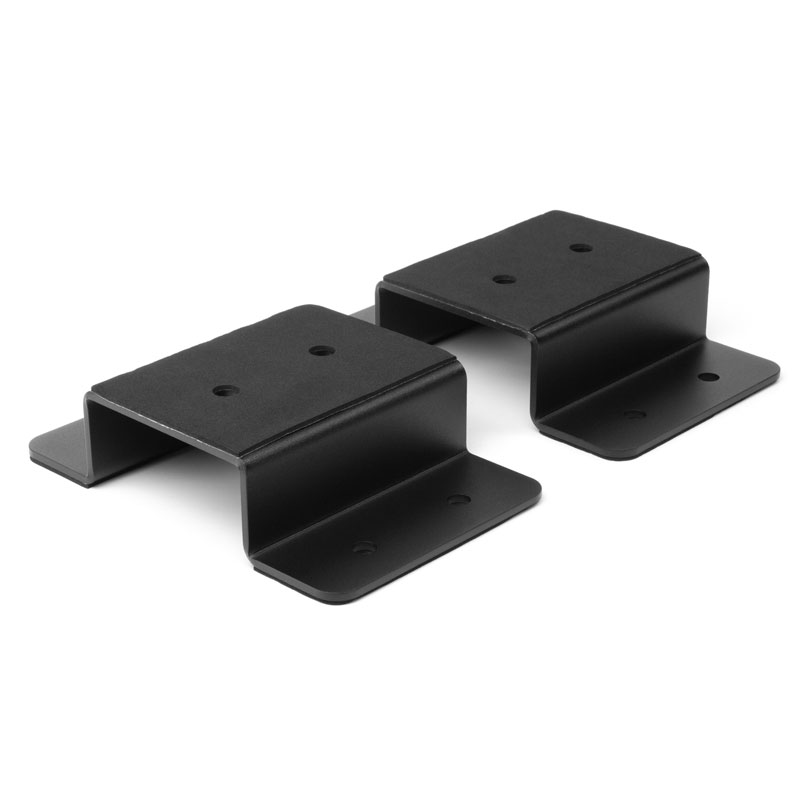

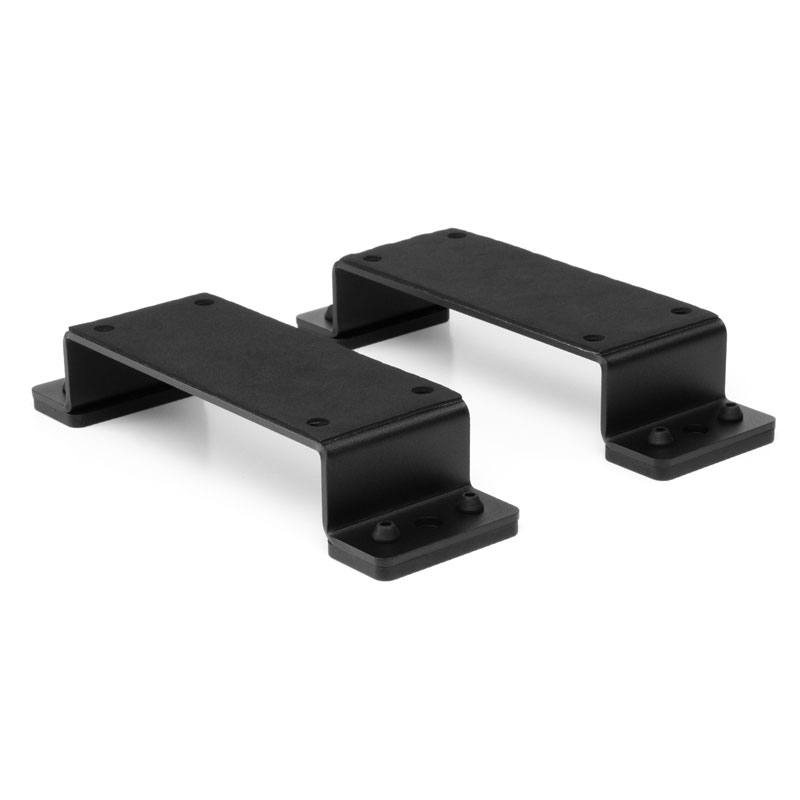

Mounting options:
The full range of Lightbars in our offer can be browsed here.
*The product may differ from image.
