WLG LED Work Lamp has a multitude of applications on vehicles such as Police, Fire, Ambulance, Tow, Agriculture, Construction, Mining, Off-road, Marine… Also suitable for emergency vehicles – police, firefighters, ambulance…
Features:
- Heavy-Duty Powder Coated Die Cast Aluminum
- Weatherproof and vibration resistance design
- LEDs rated to 50,000 hours of operation
- Reverse polarity protection
Technical specifications for WLG LED Work Lamp:
| Voltage | 10 – 80 VDC |
| Avg. Current | 0.95A |
| Max. Current | 1.6A @10VDC
0.67A @24VDC 0.32A @50VDC 0.20A @80VDC |
| Maximum power | 16W |
| Wires | Red VCC 18AWG
Black GND 18AWG |
| Wire length | 38cm |
| Operating temperature | -30°C to +50°C |
| Storage temperature | -40°C to +75°C |
| Fuse | 3Amps |
| IP rating | IPX9K |
| Certifications* | EMC |
*Approvals may vary depending on actual display configurations.
LED Features:
| No of LED elements | 4x High Intensity LED |
| Luminance | 900lm |

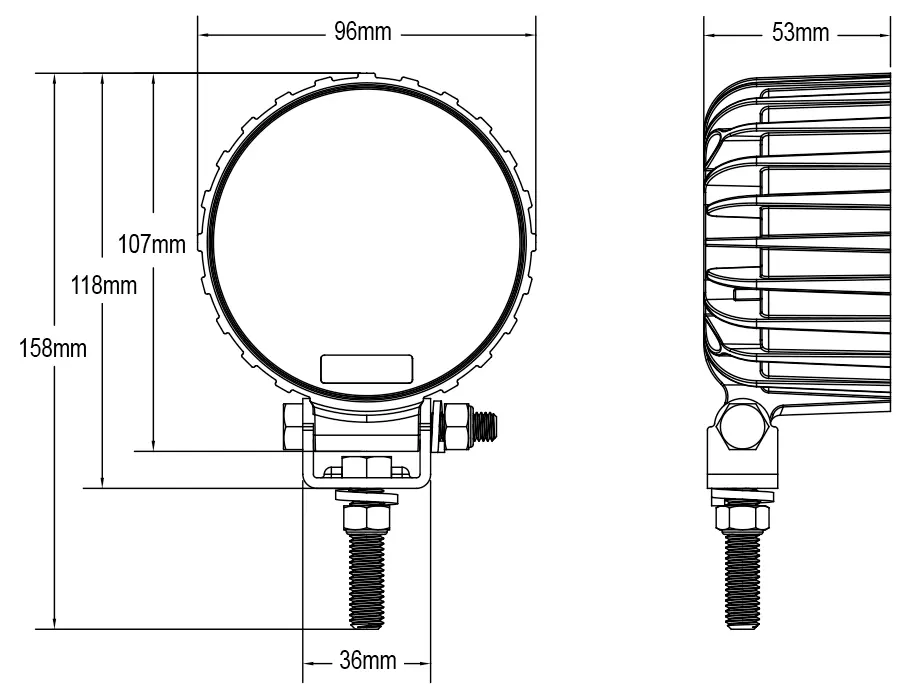

Dimensions:
Other worklights in our offer can be browsed here.
*The product may differ from image.
