OE9 R65 Lighthead has true 180º wide-angle coverage with advanced Reflector optics. 16 selectable built-in flash patterns that can be synced with other units.
Ideal for intersection warnings.
Features:
- True 180º wide-angle output
- 16 flash patterns
- Long life LEDs rated to 100,000 hours of operation
- Non-volatile memory recalls last flash pattern used at power up
- Multi-unit sync
- Aluminium base for heat dissipation
- Weatherproof and vibration resistant design for external or internal use.
- For external or internal use
- Reverse polarity protection
Technical specifications for OE9 R65 Warning Lamp:
Voltage | 12-24VDC |
Avg. Current
(depending on flash pattern) |
0.58A @12VDC
0.28A @24VDC |
Max. Current | 1.16A @12VDC
0.58A @24VDC |
Avg. current (depending on flash pattern) | 7W |
Maximum power | 14W |
Wires | RED -Vcc @20AWG
BLACK -GND @20AWG YELLOW -flash pattern and sync. @20AWG WHITE -Alternating Flash @20AWG |
Wire length | 20cm |
Fuse | 2A |
Synchronization | 15 units |
Operating temperature | -30°C to +65°C |
Storage temperature | -40°C to +75°C |
No of flash petterns | 16 |
IP rating | IP68 |
Certifications* | ECE R65, ECE R10 |
*Approvals may vary depending on actual lighthead configuration.
LED specifications:
No of LED elements | 9x High Power LED |
LED color | Blue, amber |
Lens colour | Clear |
Dimensions:

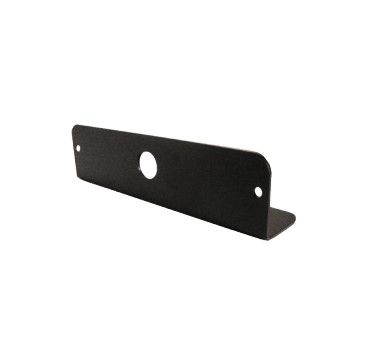

Mounting options:
The full range of available lightheads can be browsed here.
*The product may differ from image.
