SL209 Scene Light is a 9-inch LED scene light with over 1730 lumen output. It has a curved design to maximise coverage with streamlined aesthetics. Weatherproof and vibration resistant design for external use.
Available in black, white, yellow and red.
Features:
- Curved design to maximise coverage with streamlined aesthetics
- Over 1730 lumen output; Luminous intensity ≧ 820 lux at 1 metre
- Heavy-duty powder coated die-cast aluminium base for best durability and best heat dissipation
- Weatherproof and vibration resistant design for external or internal use
- Reverse polarity protection
Technical specifications for SL209 Scene Light:
| Voltage | 10 – 30 VDC |
| Raw Lumen | 1730 lm |
| Effective Lumen | 1460 lm |
| Max. Current | 1.12A @12VDC
0.56A @24VDC |
| Maximum power | 13.44 W |
| Wires | Red @20AWG
Black @20AWG |
| Wire length | 18 cm |
| Fuse | 1.5A |
| IP rating | IPX7 |
| Operating temperature | -40°C to +60°C |
| Storage temperature | -40°C to +75°C |
| Certifications* | ECE R10, CISPR 25 Class 3 |
*Approvals may vary depending on actual display configurations.
LED specifications:
| No of LED elements | 6x High Power LEDs |
| LED color | White |
| Lens colour | Clear |

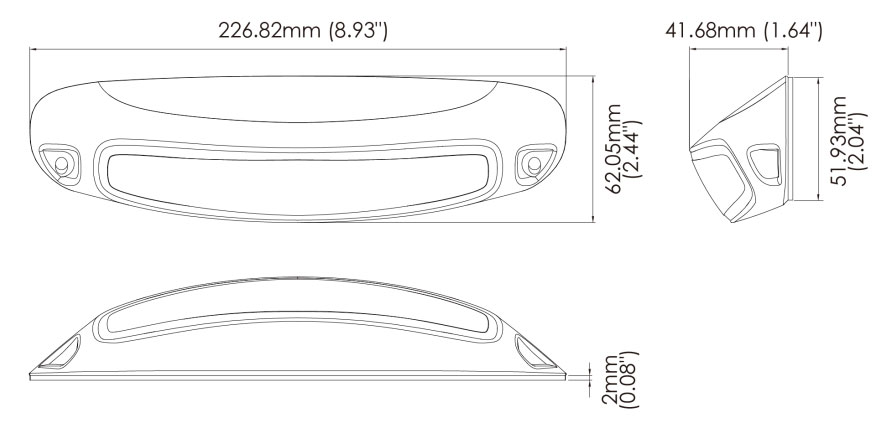

Dimensions:

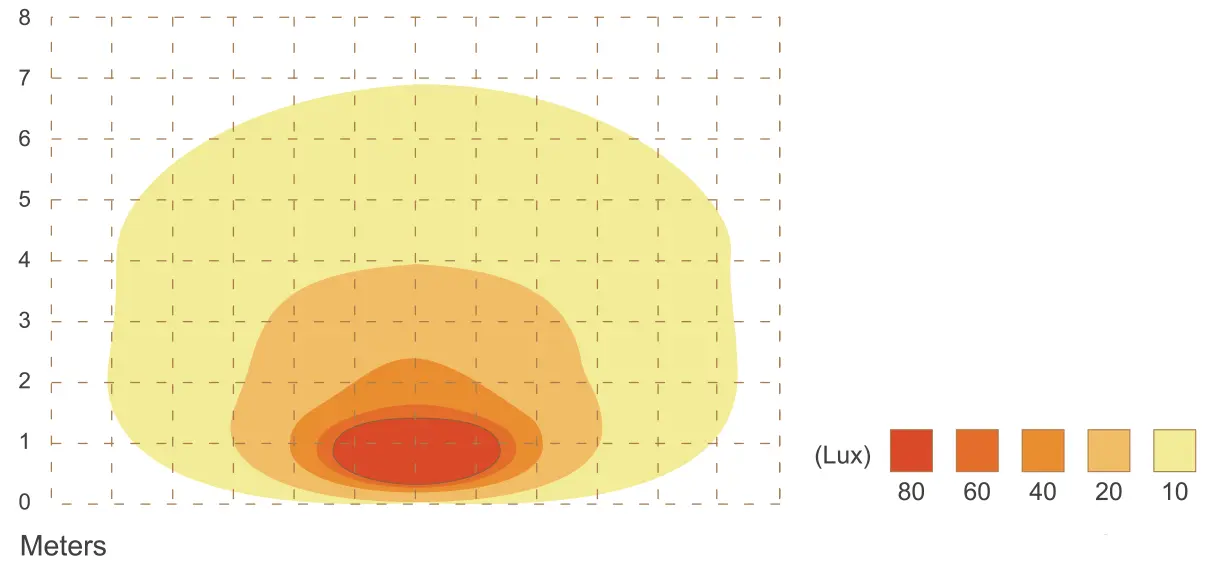

Illuminance pattern:
Other scene lights in our offer can be browsed here.
*The product may differ from image.
